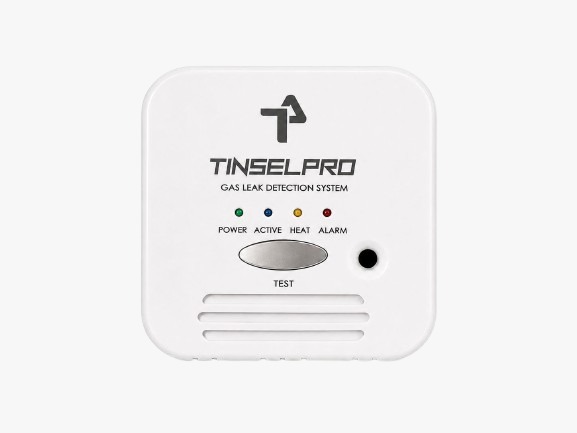

The TINSELPRO TP-0052 Gas Leak & Heat Detector is designed to enhance safety in residential and commercial environments such as kitchens, apartments, homes, restaurants, and bungalows. The detector continuously monitors the air for leakage of LPG, PNG, and CNG gases while also providing heat detection functionality for enhanced fire safety protection. This compact wall-mounted detector uses advanced semiconductor sensing technology for quick and reliable gas detection along with integrated heat sensing that activates at temperatures above 60°C. The unit provides both audible and visual alerts through an integrated 80 dB buzzer and multi-status LED indications. Built with a microprocessor-based design, the TP-0052 ensures accurate detection, stable performance, and fast response. The detector features a compact enclosure design, easy installation, and low maintenance operation. It can also be integrated with external safety and automation systems such as control panels, solenoid valves, exhaust fans, and security systems. Power : 230v AC Gas Option : LPG, PNG, LNG, CNG, CO, CH4 Heat : 60Cs
SKU: TP-0052
| Gas Option | HOME GAS |
|---|---|
| Power | 230v AC |
| Alarming Method | Automatic |
| Operating Temperature | 0 to 55 C |
| Operating Humidity | <95% |
| Display Mode | Led indications |
| Detected Gas | Natural Gas |
| Sound Level | <80 dB |
| Power Supply | 230V AC |
| Weight | 150gms |
| Current | <11mA ( in meausring condition) < 7mA ( in non measuring condition) in 12V DC |
| Optional Function | Relay output for Gas shut off valve, exhaust fan, Input to cenral security system. |
KEY ADVANTAGES (USPs)
PRODUCT FEATURES
WARM-UP PERIOD
When powered ON, the detector enters a warm-up period of approximately 60 seconds. During this time, the Warm-Up LED and Power LED remain ON until the sensor stabilizes and the unit becomes operational.
RELAY OUTPUT APPLICATIONS
The TP-0052 relay output can be connected to:
TECHNICAL SPECIFICATIONS
General Specifications
| Parameter | Details |
| Model | TP-0052 |
| Detection Method | Natural Diffusion |
| Gases Detected | LPG / PNG / CNG |
| Additional Detection | Heat Detection Above 60°C |
| Sensor Type | Semiconductor |
| Sensor Life | Approx. 2–3 Years |
| Response Time | Less than 10 Seconds |
| Alarm Output | Built-in 80 dB Buzzer |
| Test Button | Available |
| Relay Output | Potential Free Relay |
| Detection Range | Approx. 3–4 Meter Radius |
Electrical Specifications
| Parameter | Details |
| Power Supply Options | 12V DC / 24V DC / 230V AC |
| Power Consumption | Approx. 0.6 W to 2 W |
| Current Consumption | Approx. 150–200 mA |
Environmental Specifications
| Parameter | Details |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | 0°C to +60°C |
| Operating Humidity | 0–95% RH (Non-Condensing) |
Mechanical Specifications
| Parameter | Details |
| Cabinet Material | ABS Flame Retardant Housing |
| Mounting Type | Wall Mount |
| Dimensions | 100 mm × 100 mm × 33 mm |
| Weight | Approx. 160–190 g |
| LED Indications | Green – Power, Blue – Active, Yellow – Heat, Red – Alarm |
ACCESSORIES INCLUDED
WARRANTY
12 Months Warranty against manufacturing defects only.
CERTIFICATIONS
KEY HIGHLIGHTS
