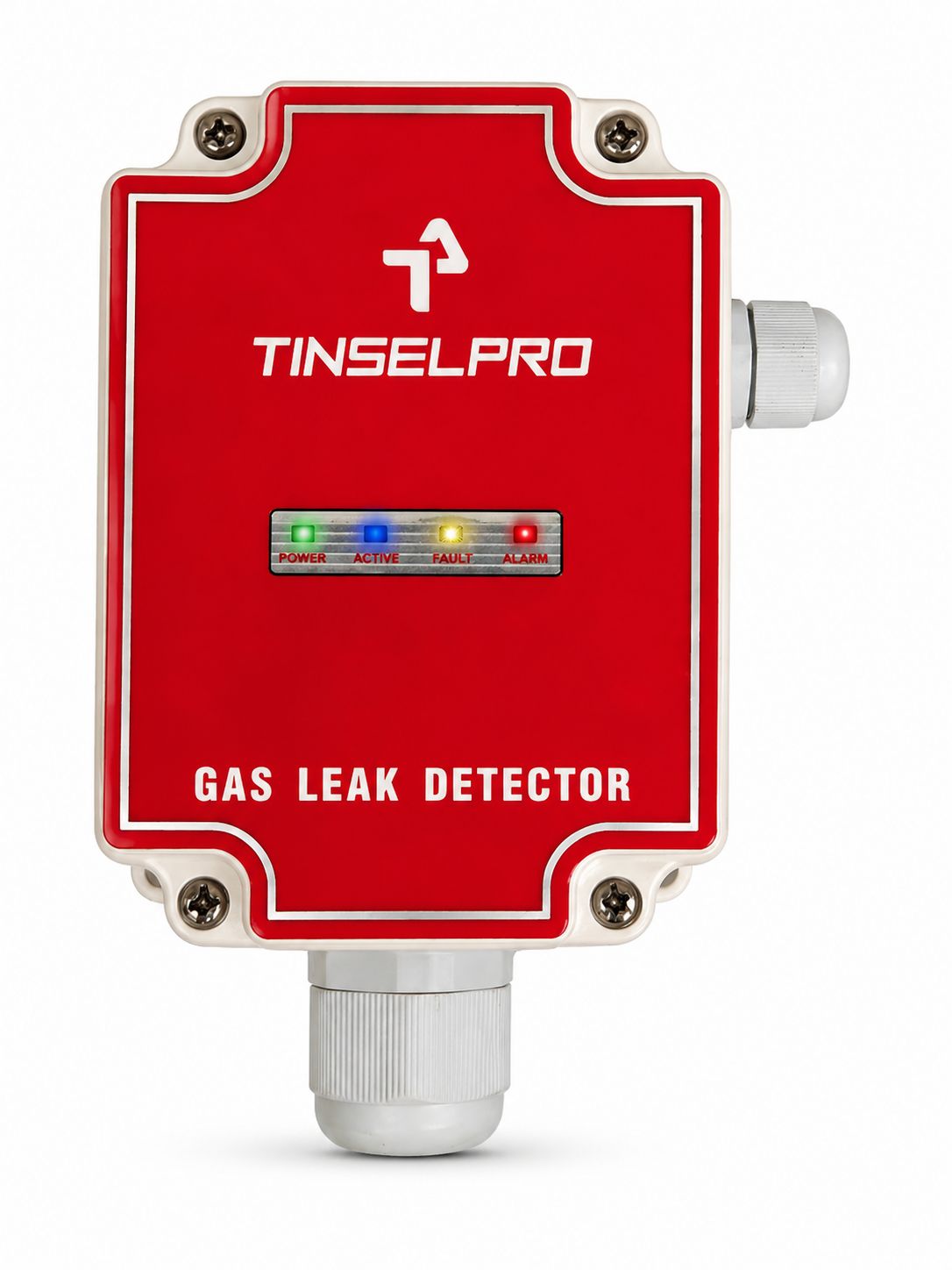

The TINSELPRO TP-2051-ND Commercial Gas Leak Detector is a robust, high-performance gas detection solution designed for industrial, commercial, and semi-hazardous environments. Built with a rugged ABS enclosure and IP65/IP67 protection, the detector continuously monitors ambient air for the presence of combustible and toxic gases and provides early warning before gas concentration reaches hazardous levels. Utilizing advanced MOS semiconductor sensing technology and a microprocessor-based design, the detector delivers fast response, stable operation, and reliable gas detection performance. The unit features LED-based status indications and a potential-free relay output for integration with safety systems such as gas control panels, alarm annunciators, solenoid shut-off valves, and industrial automation systems. Gas Option : LPG, PNG, LNG, CNG, CO, CH4, NH3, H2
SKU: TP-2051-ND
| Detected Principle | Semiconductor |
|---|---|
| Measurement Range | 0 to 999 PPM |
| Resolution | 1 PPM |
| Operating Temperature | 0 to 55 C |
| Operating Humidity | <95% |
| Display Mode | Seven Segment |
| Alarming Method | Automatic Alarming |
| Sound Level | <80 dB |
| Power Supply | 230V AC/ 12V DC/ 24V DC |
| Weight | 600gms |
| Current | <200mA (in meausring condition) <75mA (in non measuring condition) in 12V DC |
| Optional Function | Relay output for Gas shut off valve, exhaust fan, Input to cenral security system. |
| Gas Option | LPG, PNG, LNG, CNG, CO, CH4, NH3 |
| Power | 12v DC, 24v DC |
APPLICATIONS
KEY ADVANTAGES (USPs)
PRODUCT FEATURES
WARM-UP PERIOD
When powered ON, the detector enters a warm-up period of approximately 2 minutes. During this period, the status LEDs flash rapidly until sensor stabilization is completed and the detector becomes fully operational.
RELAY OUTPUT APPLICATIONS
TECHNICAL SPECIFICATIONS
General Specifications
| Parameter | Details |
| Model | TP-2051-ND |
| Detection Method | Natural Diffusion |
| Gases Detected | LPG / PNG / CNG / CH₄ / H₂ / NH₃ / CO / CFC |
| Sensor Type | Semiconductor (MOS) |
| Sensor Life | Approx. 2 Years (Depending on Installation Environment) |
| Response Time | Less than 2 Seconds |
| Recovery Time | Fast |
| Alarm Type | Audio & Visual Alarm |
| Output | Potential Free Relay (SPDT) |
| Alarm Setting | Factory Preset |
| LED Indications | Green – Power, Blue – Active, Yellow – Fault, Red – Alarm |
Electrical Specifications
| Parameter | Details |
| Operating Voltage | 12V DC / 24V DC |
| Power Consumption | Approx. 0.6 W to 2 W |
| Relay Output | Potential Free SPDT Relay |
| Detection Range | Approx. 3–4 Meter Radius |
Environmental Specifications
| Parameter | Details |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -10°C to +60°C |
| Operating Humidity | 0–95% RH (Non-Condensing) |
Mechanical Specifications
| Parameter | Details |
| Cabinet Material | ABS Opaque Housing |
| Protection Rating | IP65 / IP67 |
| Mounting Type | Wall Mount |
| Dimensions | 138 mm × 98 mm × 68 mm |
| Weight | Approx. 320–350 g |
ACCESSORIES INCLUDED
CERTIFICATIONS
WARRANTY
12 Months Warranty against manufacturing defects only.
