| Detected Principle | Semiconductor |
|---|---|
| Measurement Range | 0 to 999 PPM |
| Resolution | 1 PPM |
| Operating Temperature | 0 to 55 C |
| Operating Humidity | <95% |
| Display Mode | Seven Segment |
| Alarming Method | Automatic Alarming |
| Sound Level | <80 dB |
| Power Supply | 230V AC/ 12V DC/ 24V DC |
| Weight | 600gms |
| Current | <200mA (in meausring condition) <75mA (in non measuring condition) in 12V DC |
| Optional Function | Relay output for Gas shut off valve, exhaust fan, Input to cenral security system. |
| Gas Option | LPG, PNG, LNG, CNG, CO, CH4, NH3(C), NH3, H2 |
| Power | 12v DC, 24v DC |
APPLICATIONS
KEY ADVANTAGES (USPs)
PRODUCT FEATURES
WARM-UP PERIOD
When powered ON, the detector enters a warm-up period of approximately 2 minutes. During this period, the display indicates the initialization sequence while the status LEDs flash rapidly until sensor stabilization is completed and the detector becomes fully operational.
RELAY OUTPUT APPLICATIONS
TECHNICAL SPECIFICATIONS
General Specifications
| Parameter | Details |
| Model | TP-2051-D |
| Detection Method | Natural Diffusion |
| Gases Detected | LPG / PNG / CNG / CH₄ / H₂ / NH₃ / CO / CFC |
| Sensor Type | Semiconductor (MOS) |
| Sensor Life | Approx. 2 Years (Depending on Installation Environment) |

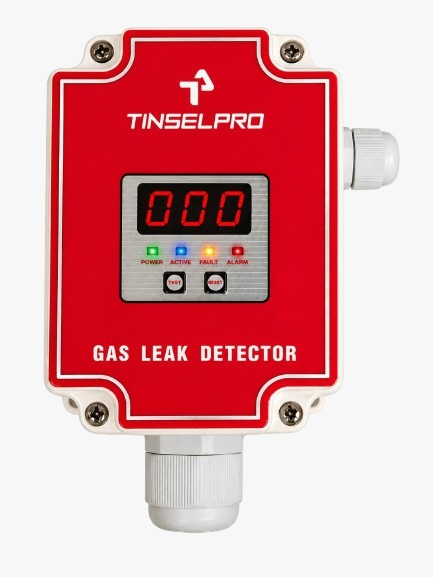

| Display Type | 3-Digit 7-Segment Display |
| Gas Indication | PPM / %LEL Display |
| Response Time | Less than 2 Seconds |
| Recovery Time | Fast |
| Alarm Type | Audio & Visual Alarm |
| Test Button | Available |
| Reset Button | Available |
| Output | Potential Free Relay (SPDT) |
| Alarm Setting | User Configurable |
| LED Indications | Green – Power, Blue – Active, Yellow – Fault, Red – Alarm |
Electrical Specifications
| Parameter | Details |
| Operating Voltage | 12V DC / 24V DC |
| Power Consumption | Approx. 0.6 W to 2 W |
| Relay Output | Potential Free SPDT Relay |
| Detection Range | Approx. 3–4 Meter Radius |
| Optional Output | Valve Output for Automatic Gas Shutoff |
Environmental Specifications
| Parameter | Details |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -10°C to +60°C |
| Operating Humidity | 0–95% RH (Non-Condensing) |
Mechanical Specifications
| Parameter | Details |

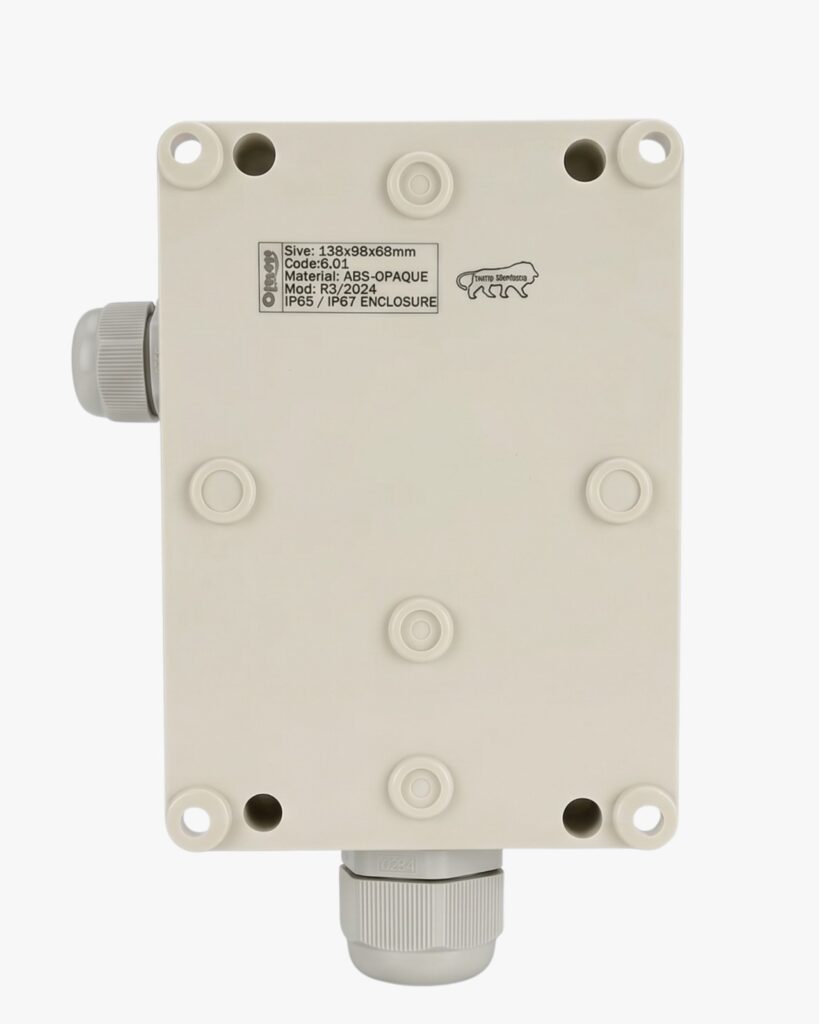

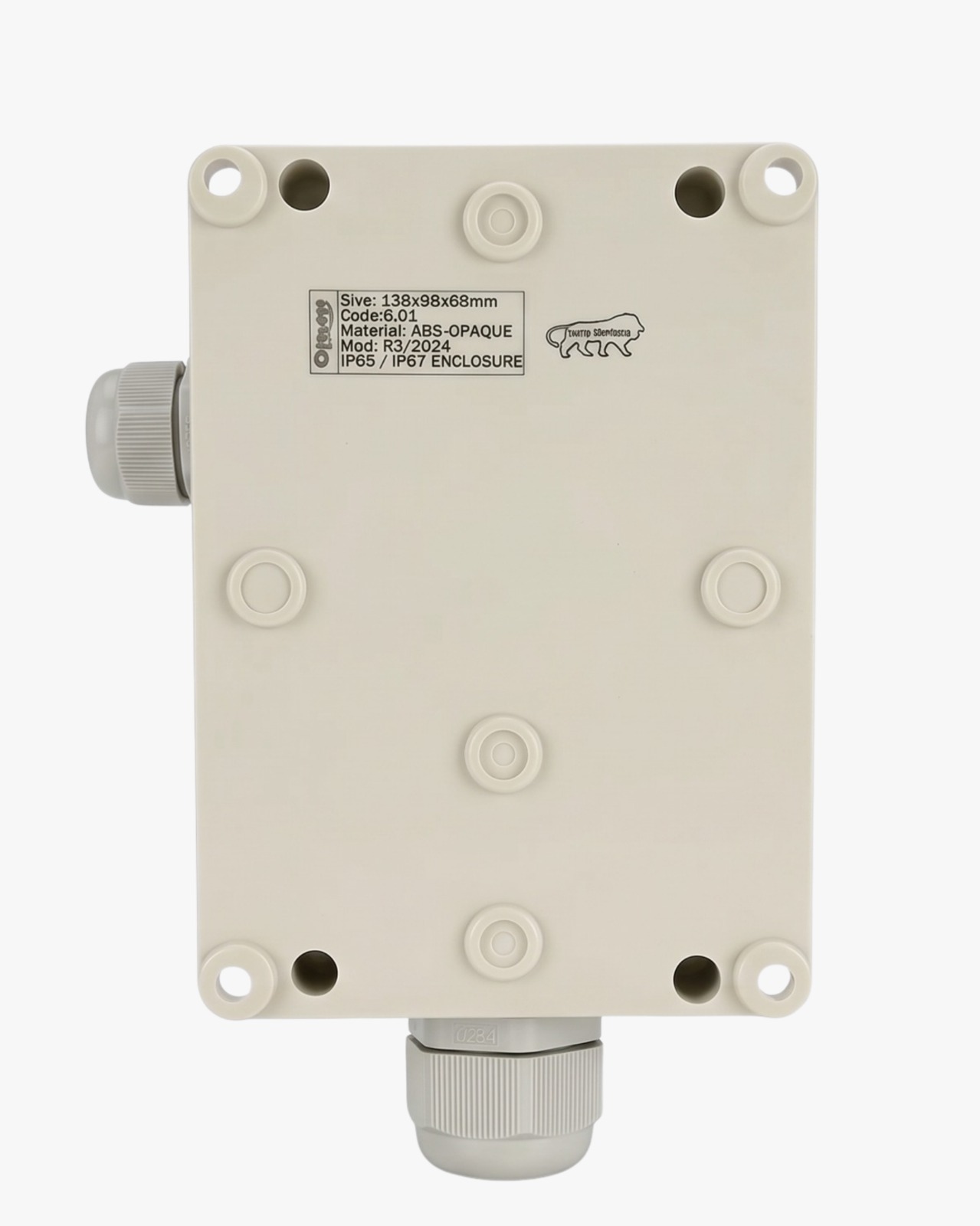

| Cabinet Material | ABS Opaque Housing |
| Protection Rating | IP65 / IP67 |
| Mounting Type | Wall Mount |
| Dimensions | 138 mm × 98 mm × 68 mm |
| Weight | Approx. 320–350 g |
ACCESSORIES INCLUDED
CERTIFICATIONS
WARRANTY
12 Months Warranty against manufacturing defects only.
