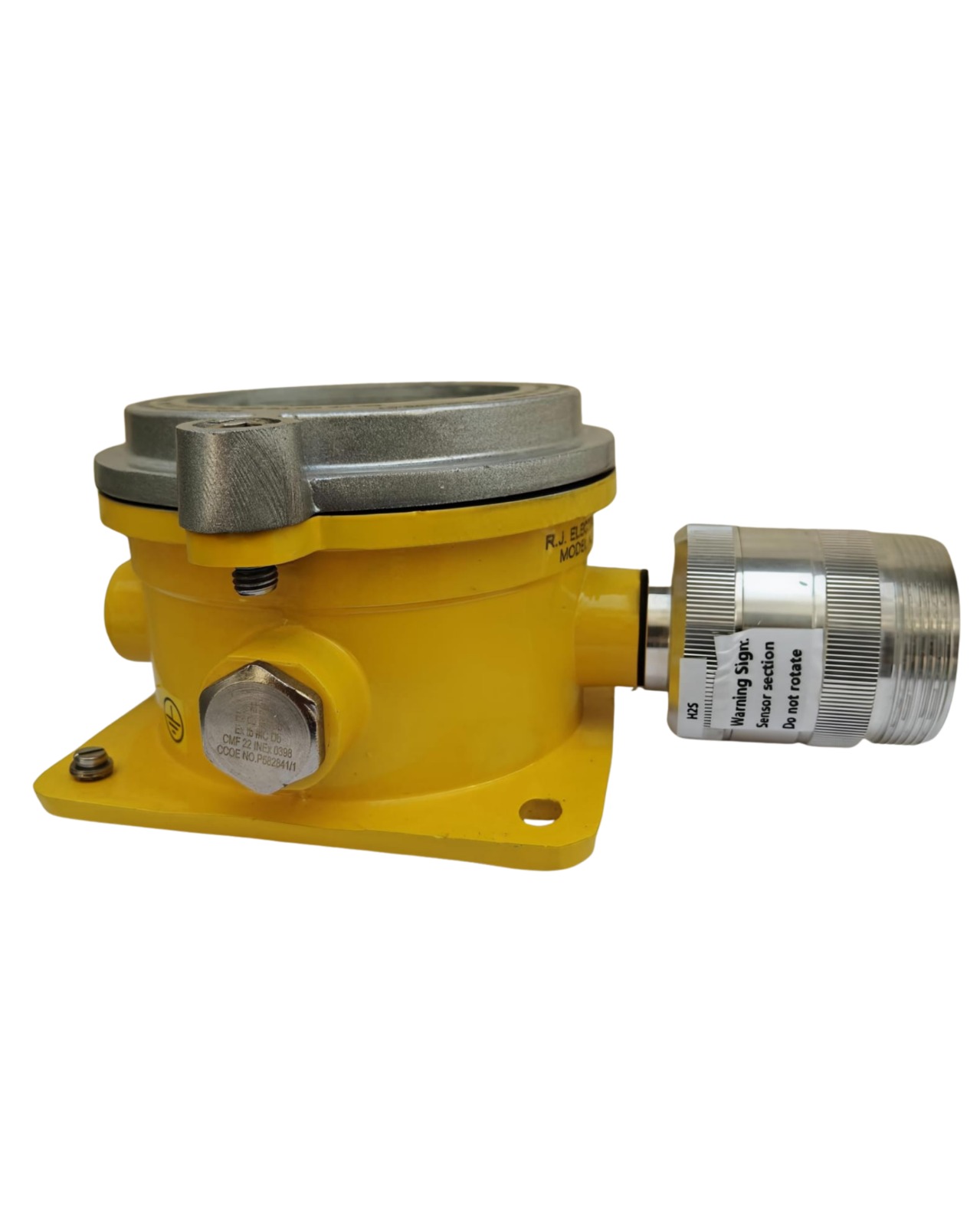

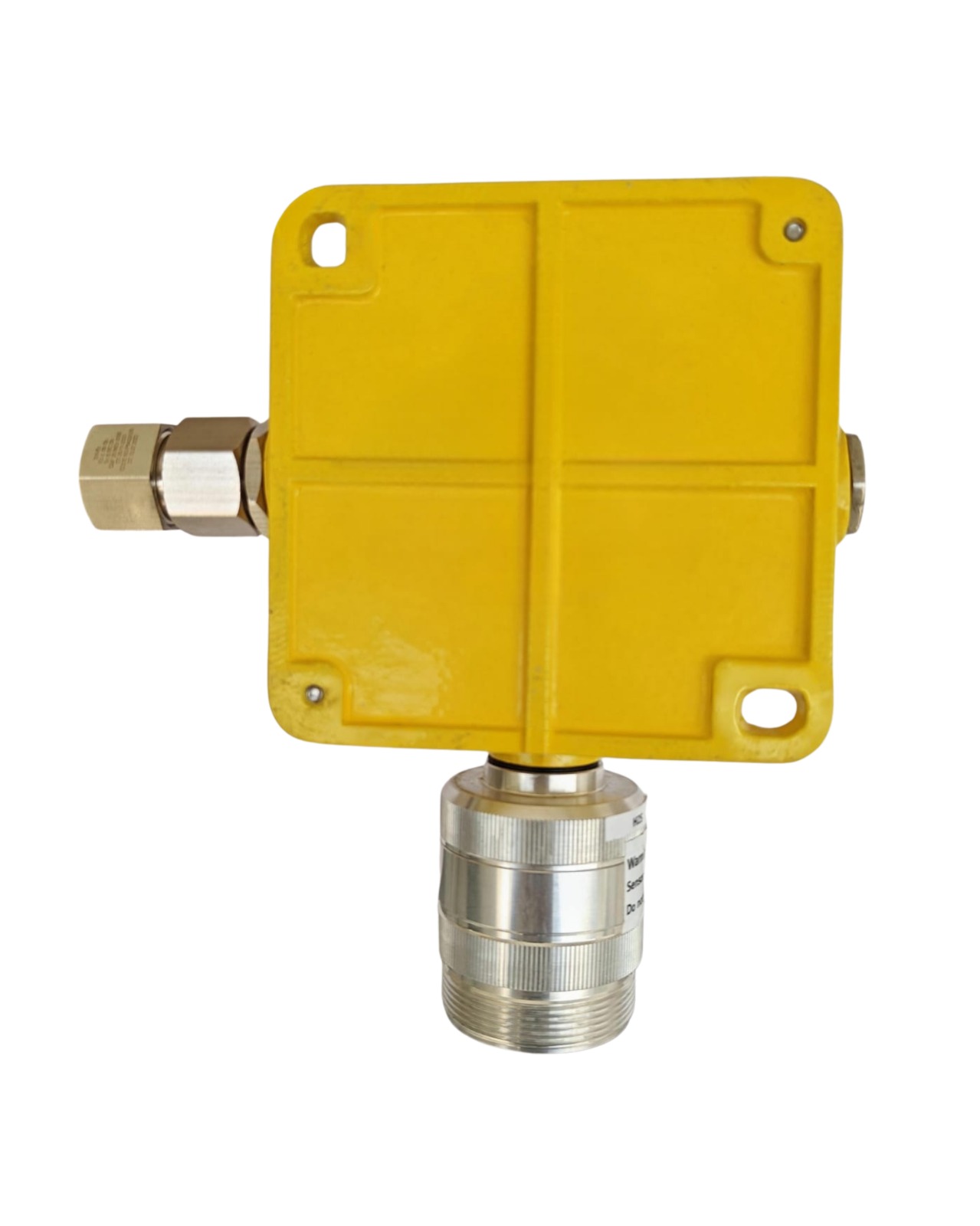

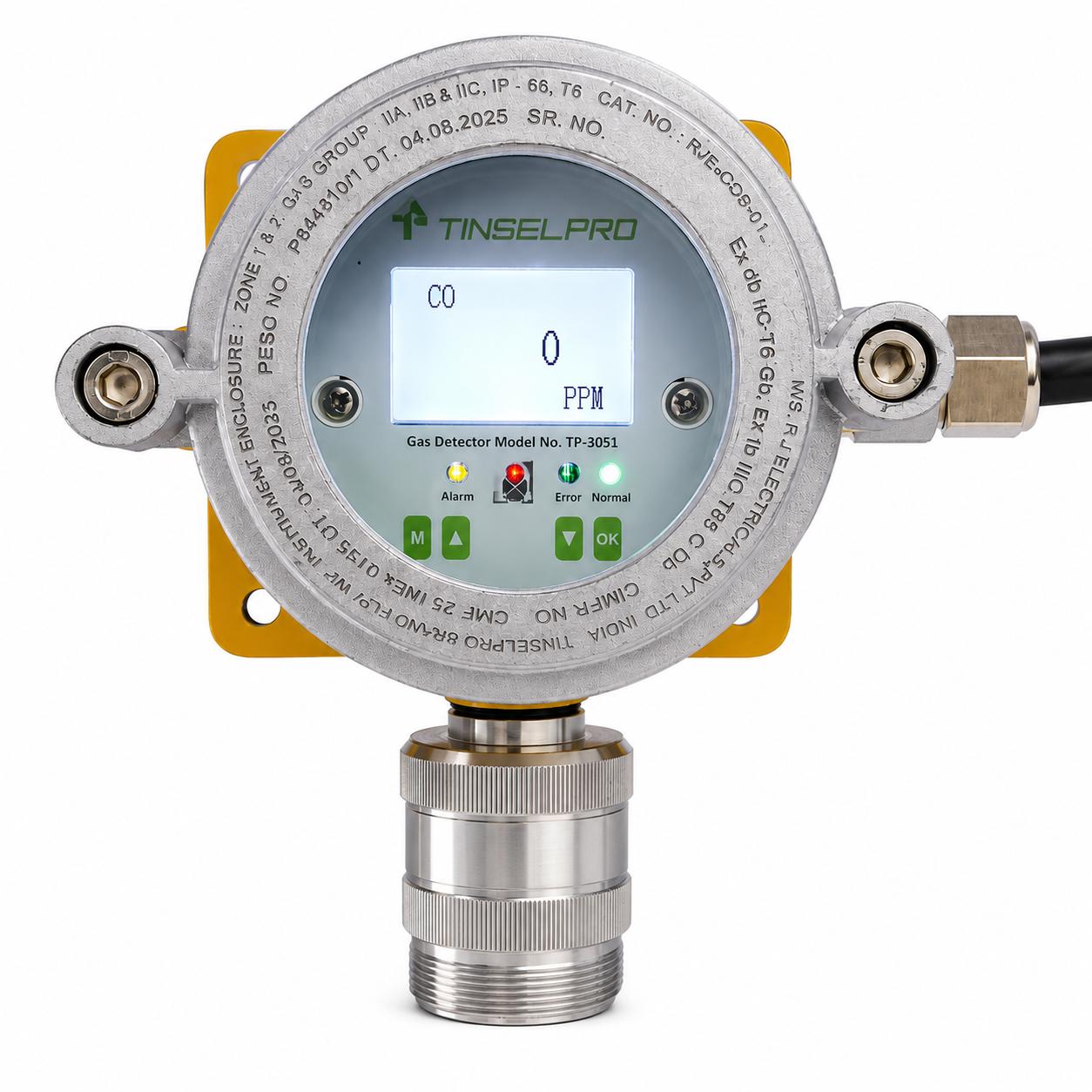

The TINSELPRO TP-3051-EC Point Type Combustible Gas Detector is a high-performance industrial gas detection solution designed for continuous monitoring of combustible and toxic gases in hazardous and commercial environments. Certified by PESO, CMRI, and CE, the detector is suitable for installation in classified hazardous areas where reliable gas detection and safety integration are critical. The detector utilizes advanced sensing technologies including catalytic combustion and electrochemical principles, depending on the target gas being monitored. Designed with a rugged flameproof enclosure, the TP-3051-EC delivers accurate gas detection, stable operation, and seamless integration with industrial automation and safety systems. Built for demanding industrial applications, the detector supports both RS-485 and 4–20mA outputs, dual relay outputs, and remote configuration capability, making it suitable for centralized monitoring and process control systems. Gas Option : LEL, O2
SKU: TP-3051-EC
| Measurement Range | 0 to 100% LEL |
|---|---|
| Resolution | 1/0.1% LEL |
| Operating Humidity | <95% |
| Operating Voltage | Power ripple <20mV |
| Display Mode | Liquid Crystal Display with real-time data and system status |
| Output Error | <80 dB |
| Relay Capacity | <1% (4-20mA part) |
| Alarm | DC 48V 1A AC 250V 1A |
| Low Level | 19.5% VOL |
| High Level | 23.5% VOL |
| Gas Option | LEL, O2 |
| Power | 24v DC |
APPLICATIONS
KEY ADVANTAGES (USPs)
PRODUCT FEATURES
RELAY OUTPUT APPLICATIONS
TECHNICAL SPECIFICATIONS
General Specifications
| Parameter | Details |
| Model | TP-3051-EC |
| Detecting Gases | Combustible Gases, Hydrogen Sulfide (H₂S), Oxygen (O₂), Carbon Monoxide (CO), and Other Optional Gases |
| Detection Principle | Catalytic Combustion Principle / Electrochemical Principle (Depending on Gas Type) |
| Detection Method | Diffused |
| Detection Range | Flammable: 0–100% LEL (Other Gas Ranges Optional) |
| Output Signal | RS-485(Optional) / 4–20mA |
| Relay Output | Passive Output, One Normally Open (NO) and One Normally Closed (NC) Contact |
| Power Consumption | < 2.5W |
Electrical Specifications
| Parameter | Details |
| Operating Voltage | DC 12V – 28V |
| Current Consumption | Approx. 500mA |
| Power Ripple | Less than 20mV |
| Communication Output | RS-485 |
| Analog Output | 4–20mA |
| Relay Outputs | Dual Relay Outputs (NO/NC) |
Environmental Specifications
| Parameter | Details |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10–95% RH (Without Condensation) |
Mechanical Specifications
| Parameter | Details |
| Enclosure Type | WP / FLP (IP66) Enclosure |
| Dimensions | Ø120 mm × 85 mm |
| Weight | Approx. 1140 g |
| Hazardous Area Marking | Ex db IIC T6 Gb / Ex tb IIIC T85°C Db |
KEY FEATURES
SYSTEM INTEGRATION COMPATIBLE WITH
CERTIFICATIONS
WARRANTY
12 Months Warranty against manufacturing defects only.
KEY HIGHLIGHTS
Easy Installation & Maintenance
