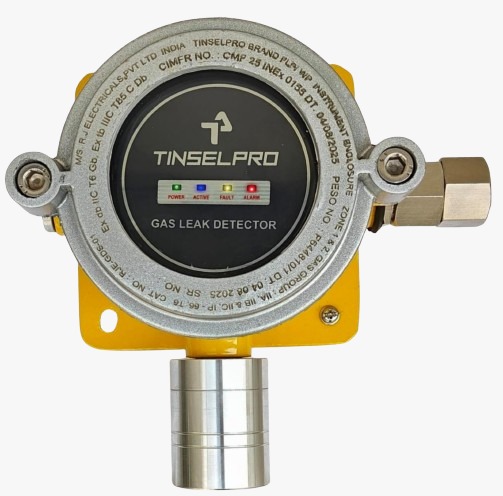

The TINSELPRO TP-3051-ND Industrial Flameproof Gas Leak Detector is designed for continuous gas monitoring in hazardous industrial environments. Certified by PESO, CMRI, and CE, the detector is suitable for installation in classified hazardous areas where reliable gas detection and safety integration are essential. The TP-3051-ND utilizes advanced MOS semiconductor sensing technology combined with a microprocessor-based system to provide stable performance, fast response, and reliable operation. The detector features LED-based status indications and is designed for integration with centralized monitoring systems, gas control panels, solenoid shut-off valves, hooters, and alarm annunciators. Built inside a rugged flameproof IP66 enclosure, the detector supports multiple gas sensing options and is engineered to withstand harsh industrial operating conditions while ensuring continuous and dependable gas monitoring. Gas Option : LPG, PNG, LNG, CNG, CO, CH4, NH3, H2
SKU: TP-3051-ND
| Detected Gas | Semiconductor |
|---|---|
| Operating Temperature | 0 to 55 C |
| Operating Humidity | <95% |
| Display Mode | Led Indication |
| Alarming Method | Automatic Alarming |
| Sound Level | <80 dB |
| Power Supply | 230V AC/ 12V DC/ 24V DC |
| Weight | 325gms |
| Current | <200mA (in meausring condition) <75mA (in non measuring condition) in 12V DC |
| Optional Function | Relay output for Gas shut off valve, exhaust fan, Input to cenral security system. |
| Gas Option | LPG, PNG, LNG, CNG, CO, CH4, NH3 |
| Power | 12v DC, 24v DC |
APPLICATIONS
KEY ADVANTAGES (USPs)
PRODUCT FEATURES
WARM-UP PERIOD
When powered ON, the detector enters a warm-up period of approximately 50–60 seconds. During this period, the LEDs indicate sensor stabilization until the detector becomes fully operational.
RELAY OUTPUT APPLICATIONS
TECHNICAL SPECIFICATIONS
General Specifications
| Parameter | Details |
| Model | TP-3051-ND |
| Detection Method | Natural Diffusion |
| Gases Detected | LPG / PNG / CNG / LNG / CH₄ / H₂ / NH₃ / CO / CFC |
| Sensor Type | Semiconductor (MOS) |
| Response Time | Less than 10 Seconds |
| Output | SPDT Relay Output |
| Non-Display Variant | LED Status Indication Only |
| Hazardous Area Marking | Ex db IIC T6 Gb |
| Dust Protection Marking | Ex tb IIIC T85°C Db |
| Certifications | PESO Approved / CMRI Certified / CE Marked |
| LED Indications | Green – Power, Blue – Active, Yellow – Fault, Red – Alarm |
Electrical Specifications
| Parameter | Details |
| Operating Voltage | 12V DC / 24V DC |
| Relay Output | SPDT Relay |
| Optional Output | 4–20 mA Analog Output |
| Cable / Wire | 1.5 sq.mm 4 Core Copper Armoured Cable |
Environmental Specifications
| Parameter | Details |
| Operating Temperature | 0°C to +50°C |
| Operating Humidity | Up to 95% RH (Non-Condensing) |
Mechanical Specifications
| Parameter | Details |
| Enclosure Type | WP / FLP (IP66) Enclosure |
| Mounting Type | Wall Mount / Stand Mount |
| Dimensions | Ø120 mm × 85 mm |
| Weight | Approx. 1140 g |
OPTIONAL ACCESSORIES
CERTIFICATIONS
WARRANTY
12 Months Warranty against manufacturing defects only.
KEY HIGHLIGHTS
Easy Installation & Maintenance
